Strong Interlocking Shelf Support
When The Furniture Moves,
Strengthen The Joint.

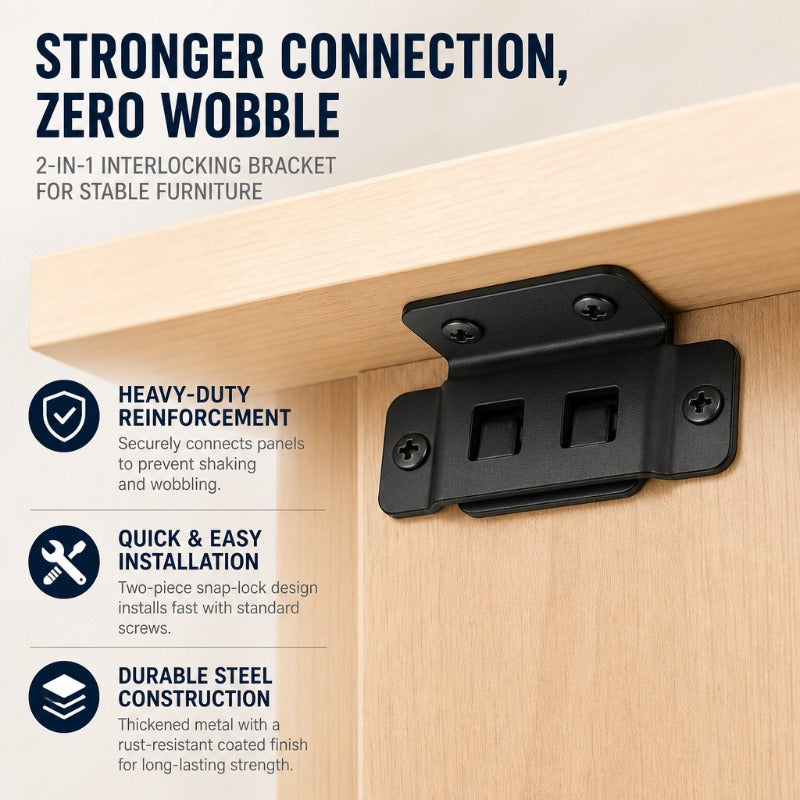

A compact two-piece steel bracket that screws onto adjoining furniture panels, then interlocks through dual tabs and slots to help reinforce the connection.
It’s The Tiny Movement At The Joint
That Keeps Giving The Problem Away.
Furniture often begins to feel loose where two panels meet. Reinforcing that connection can be simpler than replacing the whole piece.
Screws Hold The Plates.
Tabs Help Hold The Joint Together.

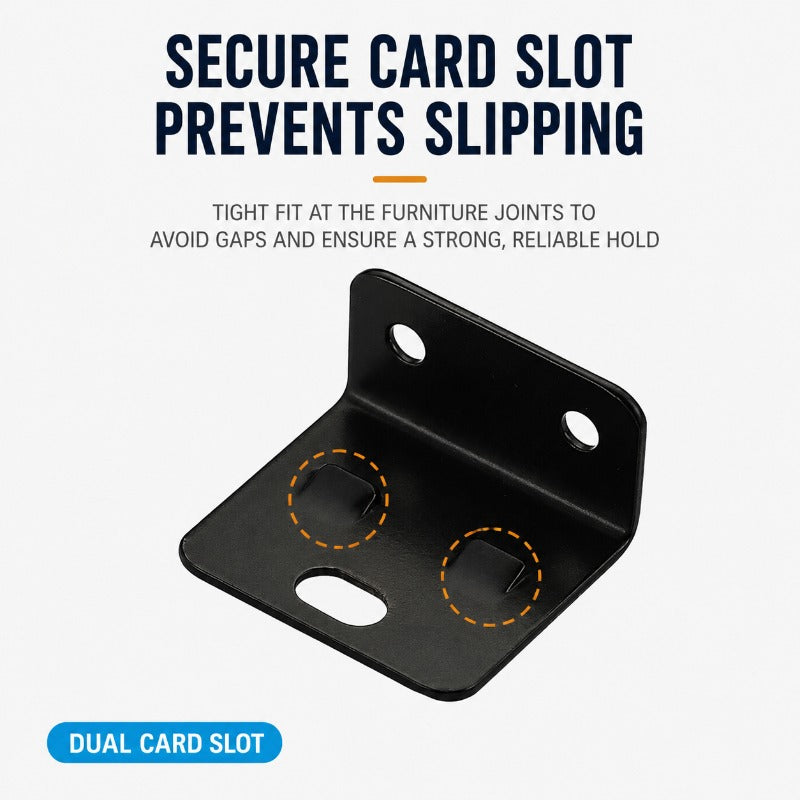

The angled bracket uses two raised locking tabs that slide into matching openings in the flat plate, adding a mechanical interlock between the two screwed components.
-
2
Dual locking points.
Two tabs engage with two corresponding slots rather than relying on one central connection. -
↔
Helps resist unwanted sliding at the joint.
The interlocking geometry adds another layer of restraint beyond screw friction alone. -
▰
Keeps the two bracket pieces closely engaged.
Once aligned, the parts nest together into a compact connection.
One Flat Plate.
One Angled Bracket.
The support separates into two pieces during installation, allowing each component to be fixed to its own furniture panel before the connection is brought together.

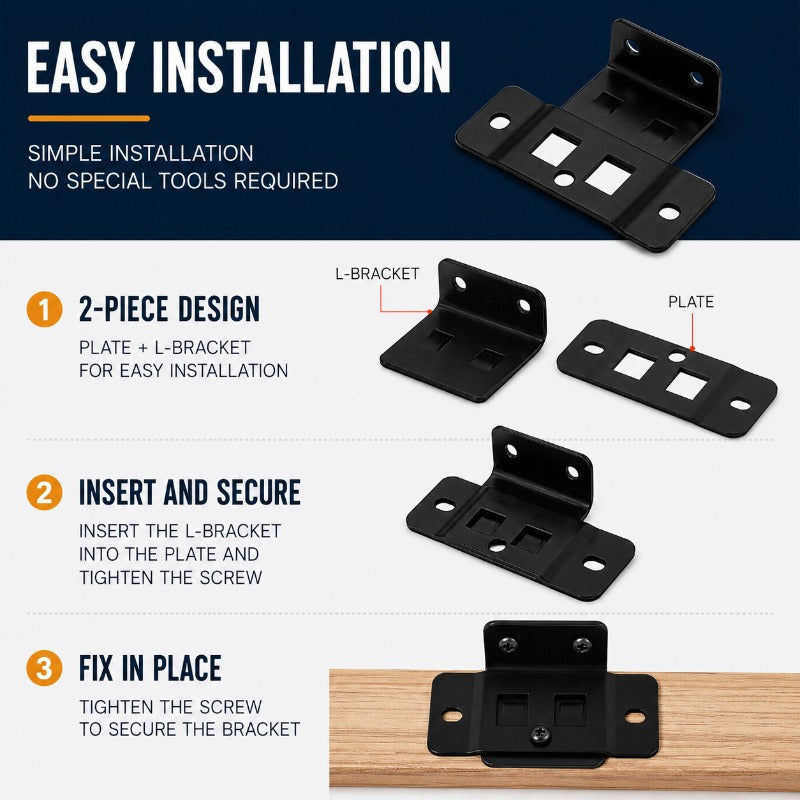

Mount Both Pieces.
Slide Them Together.
The surface-mounted design keeps installation focused on positioning and fastening the two bracket pieces rather than cutting a hidden joint into the wood.
Position The Two Parts
Align the flat plate on one panel and the angled bracket on the adjoining surface.
Fasten To The Furniture
Secure each piece using screws appropriate for the material and thickness of your furniture panels.
Engage The Interlock
Bring the joint together so the raised tabs slide into the matching plate openings.
Check The Joint
Confirm the connection sits properly and that all fasteners are secure before returning the furniture to normal use.
Steel Where
The Furniture Needs Reinforcement.

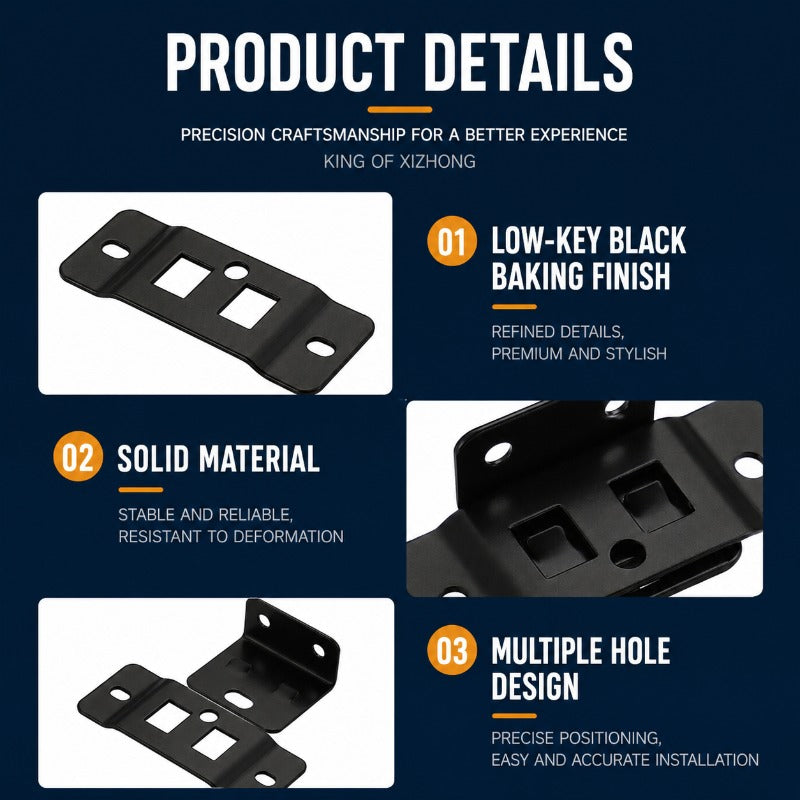

The bracket uses 1.2 mm thickened steel with a matte coated finish, creating a compact reinforcement component that can sit discreetly inside furniture.
-
1.2
1.2 mm steel thickness.
Gives the compact part a rigid metal structure for furniture-joint reinforcement. -
●
Matte coated finish.
Available in black or white to blend more easily with different interiors. -
○
Multiple mounting points.
Elongated and round holes support practical alignment during installation.
Use It Where
Two Panels Need A Better Connection.
The compact 90-degree design works best as reinforcement at suitable furniture joints, panel connections and spliced boards.
Kitchen Cabinets
Storage Cabinets
Bed Frames
Wardrobes
Bookcases
Wood Panels
DIY Furniture
Joint Repairs
Compact Dimensions.
Practical Reinforcement.
At approximately 63 mm long and 25 mm wide, the assembled support is sized for discreet reinforcement rather than becoming a large visible structural feature.

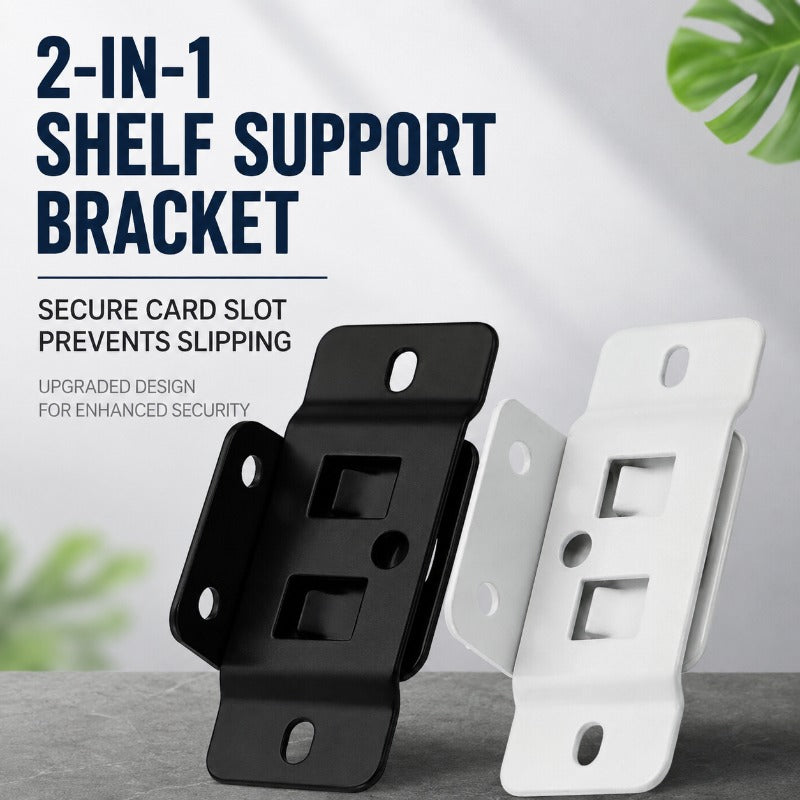

Black Or White.
Match darker furniture hardware with black, or choose white where a lighter bracket will disappear more naturally into the cabinet interior.
Give The Joint
More Than Just Another Screw.
-
🔒
Add a mechanical interlock between two furniture panels.
Dual tabs engage matching slots after both pieces are mounted. -
↔
Help reduce sliding movement at the connection.
The interlocking geometry works together with the screw-mounted plates. -
🛠
Install without cutting a mortised joint.
The two components mount directly to suitable furniture surfaces. -
1.2
Use steel reinforcement in a compact footprint.
The bracket is formed from 1.2 mm thickened steel. -
🏠
Keep one hardware kit useful across several rooms.
Reinforce suitable cabinets, wardrobes, bed frames and panel joints.
Product Details.

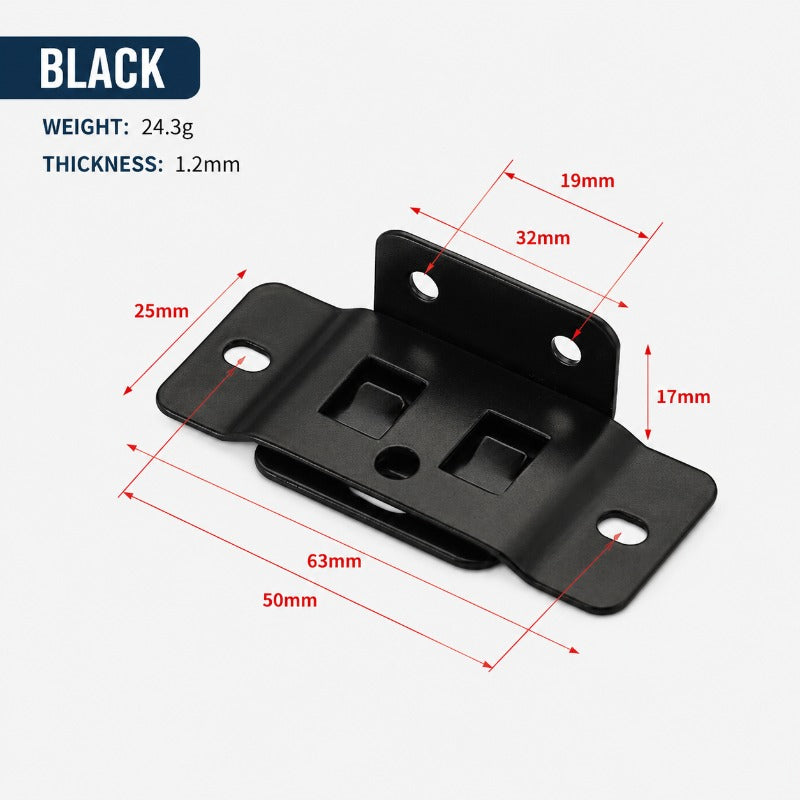

| Product Type | 2-Piece Interlocking Furniture Joint Support |
| Construction | Flat Locking Plate + 90° Angled Bracket |
| Locking Design | Dual Tabs + Dual Matching Slots |
| Material | Thickened Steel |
| Finish | Matte Powder-Coated Finish |

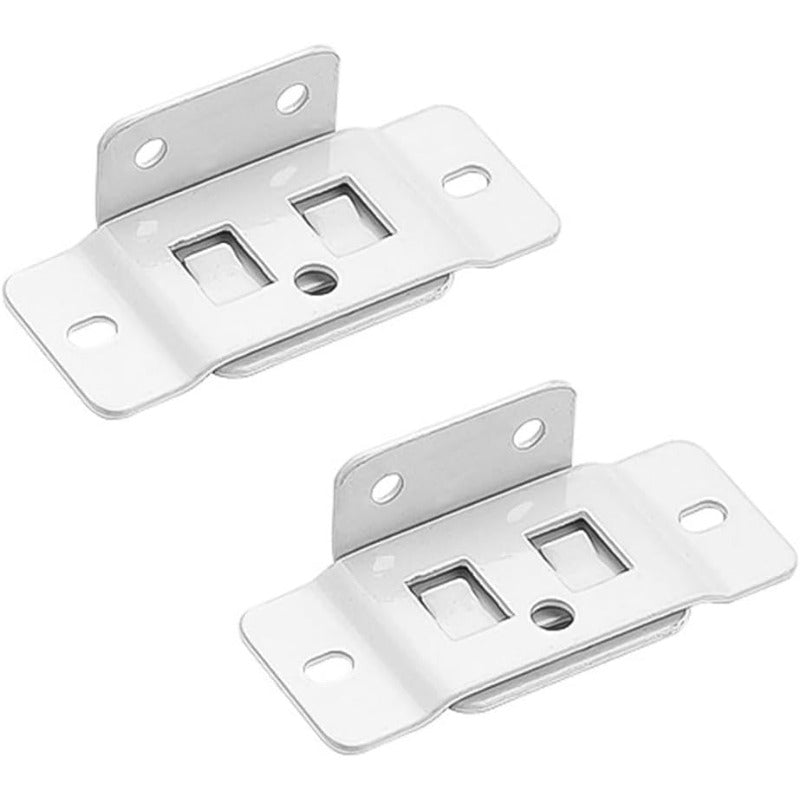

| Color Options | Black • White |
| Overall Length | Approx. 63 mm / 2.48 in |
| Overall Width | Approx. 25 mm / 0.98 in |
| Vertical Flange Height | Approx. 17 mm / 0.67 in |
| Steel Thickness | Approx. 1.2 mm / 0.047 in |
| Weight | Approx. 24.3 g / 0.86 oz Per Set |
| Plate Hole Spacing | Approx. 50 mm / 1.97 in Center-To-Center |
| Installation | Surface Mount With Suitable Screws |
| Current Bundle | 10 Sets |
| Recommended Uses | Cabinets • Wardrobes • Bed Frames • Panel Joints • Furniture Reinforcement |
This product is intended primarily for furniture-joint reinforcement and panel connection. It is not intended to act as the sole primary load-bearing support for very heavy floating shelves or other structural applications. Installation strength depends on the furniture material, screw selection, placement and condition of the existing joint.
Interlocking Support FAQ.
How is this different from a standard L-bracket?
The design uses two separate mounted components. Raised tabs on the angled bracket engage matching openings in the flat plate, adding a mechanical interlock between the two sides of the furniture joint.
What furniture can I use it on?
It is intended for suitable furniture and panel connections such as cabinets, wardrobes, bed frames, bookcases and joined wood boards where the dimensions and mounting surfaces are appropriate.
Can I use it as the main bracket for a heavy floating shelf?
It should not be relied on as the sole primary load-bearing support for very heavy floating shelves. Its intended role is reinforcing furniture joints and panel connections.
How do I install it?
Mount the flat plate and angled bracket to the two adjoining furniture surfaces, align the pieces and bring them together so the locking tabs engage the matching slots.
What screws should I use?
Screw type and length depend on your furniture material and panel thickness. Choose fasteners that provide secure engagement without penetrating through the visible side of the panel.
What colors are available?
The current product page offers black and white finish options.
How large is each bracket set?
The assembled support is approximately 63 mm / 2.48 inches long and 25 mm / 0.98 inches wide, with a material thickness of approximately 1.2 mm.
How many do I receive?
The current listed bundle contains 10 sets. Each set uses the matching two-piece interlocking bracket system.
Mount Both Pieces.
Lock The Joint.
Give It More Support.
Add a compact steel interlock where suitable furniture panels meet and give loose connections a more deliberate reinforcement point.
