Pocket Digital Oscilloscope

Stop Guessing What the Signal Is Doing.

See waveforms in real time, check key measurements and troubleshoot electronics without dragging a full-size bench oscilloscope to every job.

200kHz bandwidth • 2.5MS/s sampling • 2.8" LCD • USB-C rechargeable • pocket-size body
Pocket digital oscilloscope used for automotive diagnostics
Stop Guessing

Electrical Problems Are Easier When You Can See the Waveform.

A portable scope gives you a visual reference so you can inspect signal behavior before deciding what needs attention.

See the SignalView waveform shape instead of relying on guesswork.
Find Changes FasterWatch signal behavior while the circuit is operating.
Take It to the JobCompact enough for the toolbox, car or project bench.
Portable oscilloscope maintenance and learning features

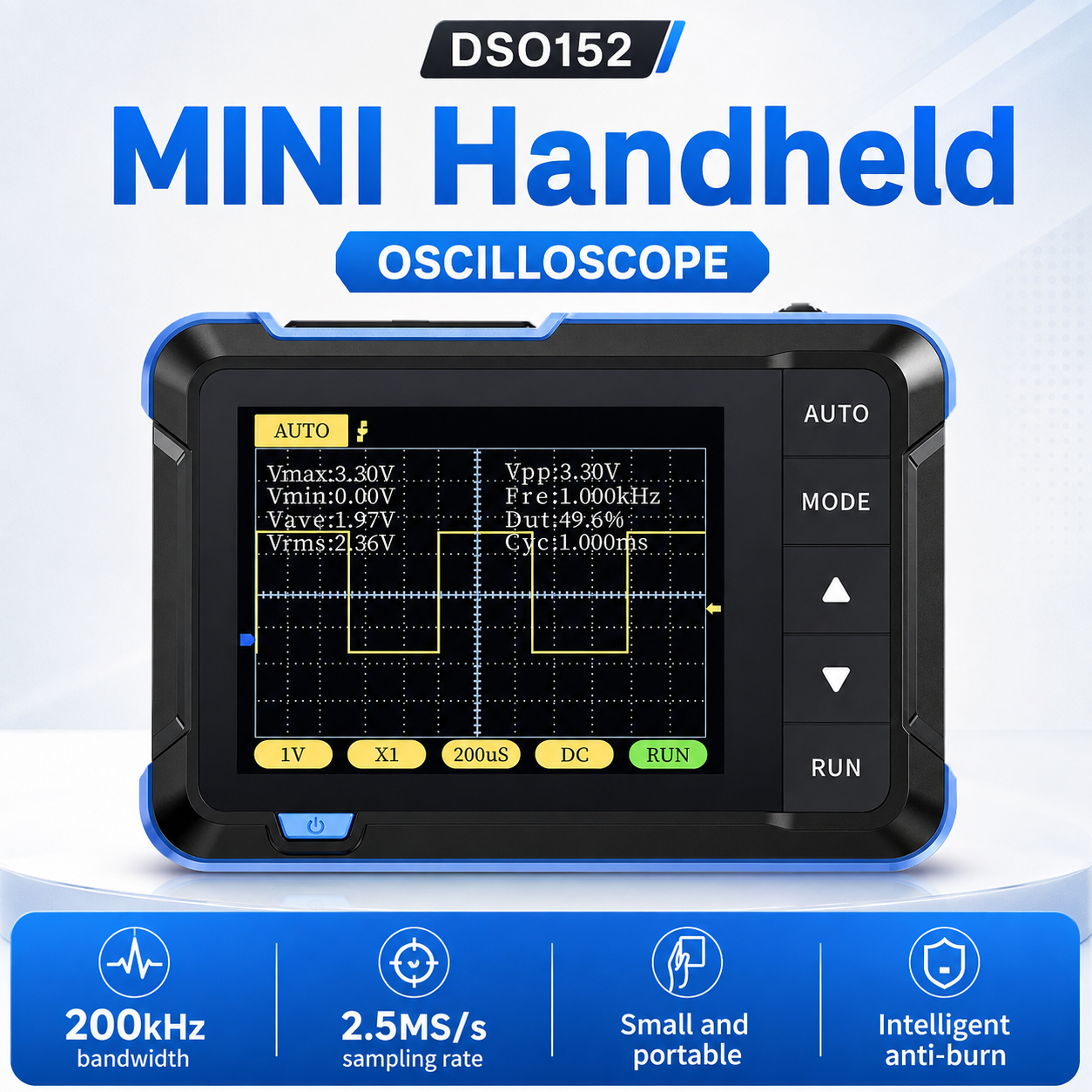

Real-Time Signal Viewing

200kHz Bandwidth. 2.5MS/s Sampling.

The current product graphics list 200kHz bandwidth and a 2.5MS/s sampling rate for many low-frequency electronics, audio and learning tasks.

See signal shape, frequency behavior and waveform changes instead of only a static voltage number.
DSO152 200kHz bandwidth and 2.5MS/s sampling rate

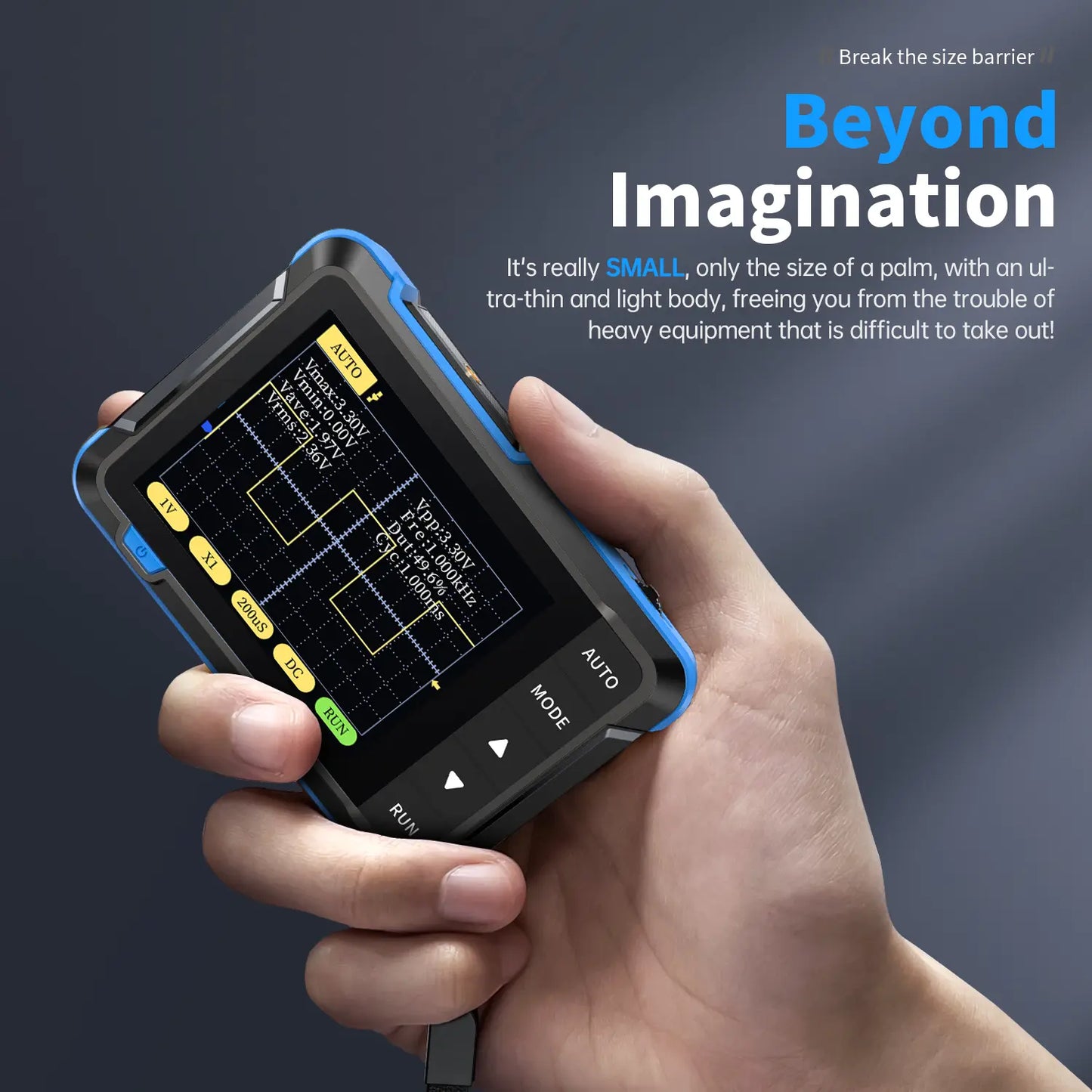

Pocket-Size Design

Useful Testing Power Without Bench-Size Equipment.

The palm-size body makes it easier to bring waveform testing directly to the project.

AutomotiveCompatible car-audio and low-voltage electronic troubleshooting.
DIY ElectronicsUseful for learning, prototyping and circuit testing.
Portable Field WorkTest where a conventional bench scope is inconvenient.
Palm sized handheld digital oscilloscope

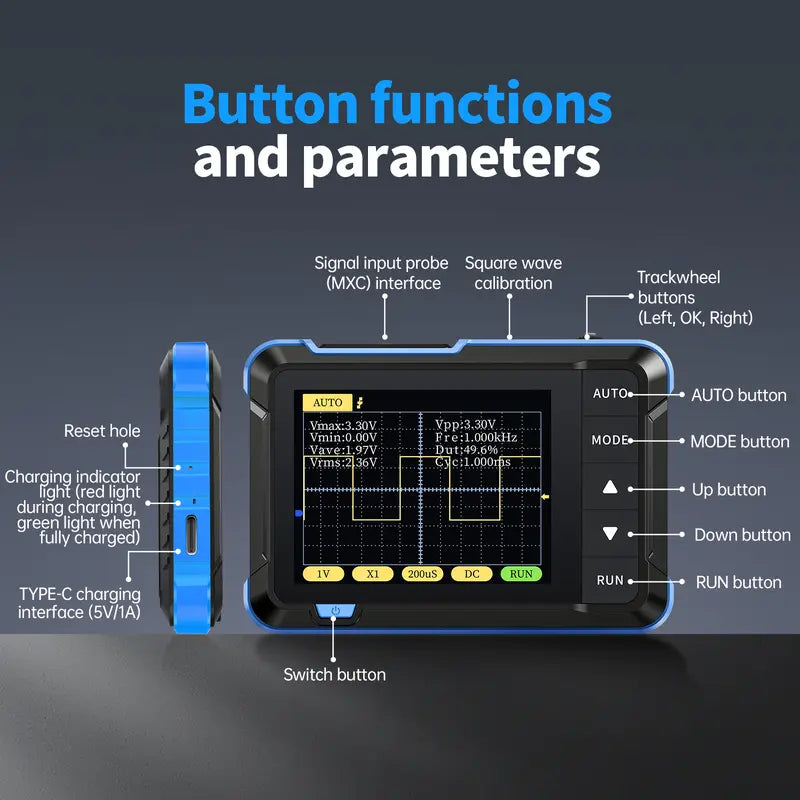

Dedicated Physical Controls

Less Menu Digging. More Testing.

AUTO, MODE, UP, DOWN and RUN buttons keep common actions within reach, while the side trackwheel provides quick navigation.

  • AUTO one-click adjustment
  • MODE selection
  • Up / Down controls
  • RUN control
  • Trackwheel navigation
  • Type-C 5V/1A charging
Oscilloscope button functions and interfaces

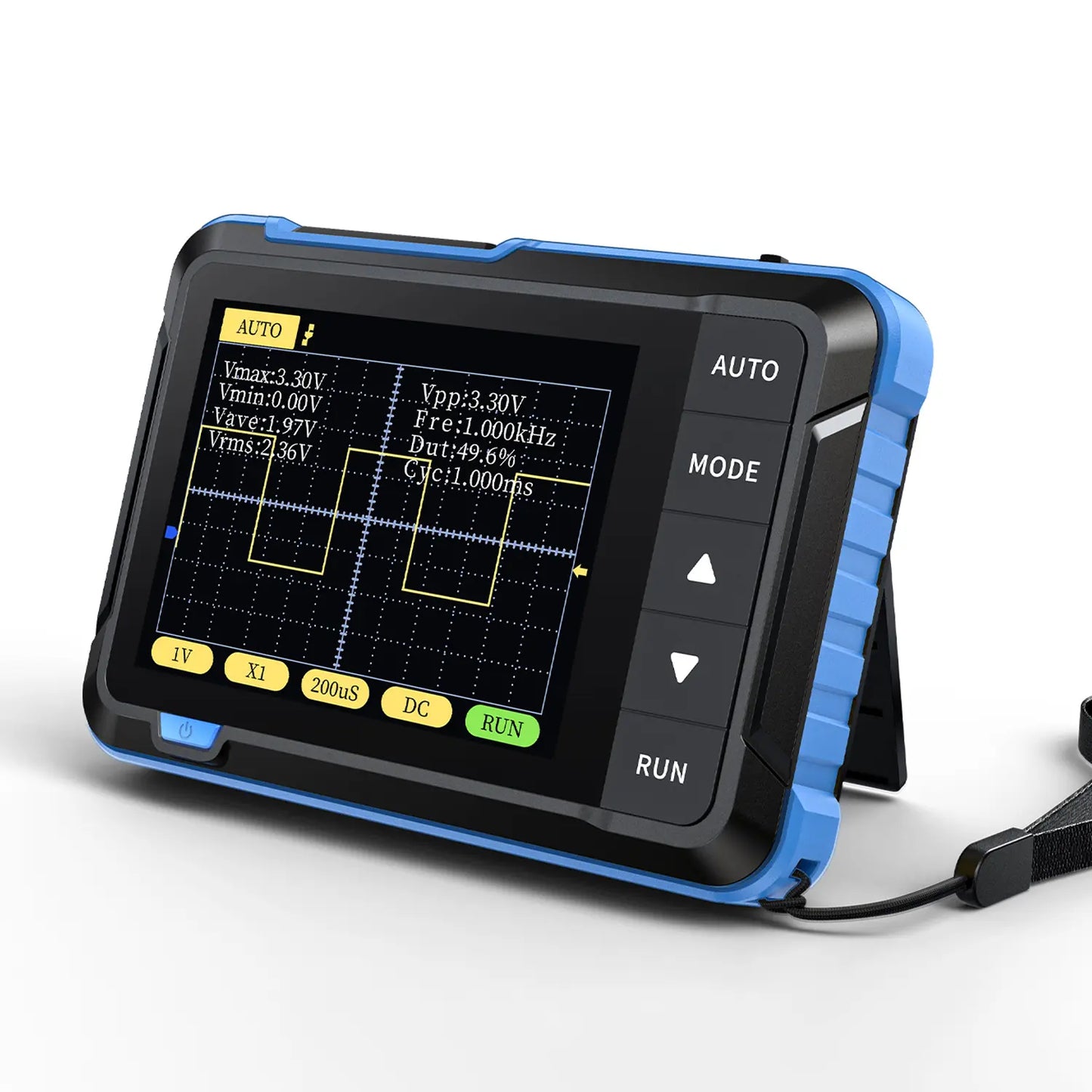

Hands-Free Viewing

Set It Down and Keep Both Hands on the Circuit.

A 90° foldable rear stand lets the unit sit upright on a flat work surface while you position probes or adjust components.

Responsive ButtonsPhysical controls for quick operation.
90° Foldable StandHands-free viewing on a flat surface.
Type-C PortCharging and firmware-upgrade support.
Precision DialQuick setting and navigation control.
Oscilloscope foldable stand type c port and control dial
Automatic Measurement

Useful Data at a Glance.

The current product imagery shows eight parameter measurements, AUTO adjustment and a 1kHz calibration square-wave output.

8 Measurement TypesMultiple signal values displayed on screen.
AUTO AdjustmentOne-click setup for faster waveform viewing.
1kHz CalibrationBuilt-in square-wave reference for calibration and learning.
Automatic adjustment eight measurements and 1kHz calibration
USB-C Rechargeable

Work Away From the Bench.

The unit uses a built-in 1000mAh lithium battery and Type-C charging, making it practical for portable low-voltage diagnostic and learning work.

Recharge it, pack it and bring waveform testing to the garage, vehicle or project bench.
Portable oscilloscope standing on foldable rear support
How It Works

Connect. Observe. Diagnose.

1ConnectAttach the compatible probe to the signal point.
2ObserveView waveform changes and measurements.
3DiagnoseCompare what you see with expected circuit behavior.
Product Highlights

Bench-Scope Thinking in a Pocket-Size Format.

200kHz BandwidthFor many low-frequency electronics and audio-related signals.
2.5MS/s SamplingCaptures waveform data for real-time viewing.
2.8-Inch LCDCompact screen for waveform and measurement readouts.
1000mAh BatteryRechargeable portable operation away from the bench.
Specifications

Product Details

Model DSO152
Product Type Pocket Digital Oscilloscope
Display 2.8-Inch LCD
Bandwidth 200kHz — Current Product Graphic
Sampling Rate 2.5MS/s — Current Product Graphic
Calibration Output 1kHz Square Wave
Automatic Measurement 8 Parameter Types Shown
Auto Setup One-Click AUTO Adjustment
Battery 1000mAh Lithium Battery
Charging USB-C / Type-C, 5V / 1A
Stand 90° Foldable Rear Stand
Signal Input MXC Probe Interface — Current Product Graphic
Firmware Firmware Upgrade Support Listed
Applications Automotive Electronics • Car Audio • Circuit Diagnostics • DIY Electronics • Learning
The current listing identifies the unit as DSO152 and shows 200kHz bandwidth, 2.5MS/s sampling, 1000mAh battery, 1kHz calibration, eight measurements and USB-C charging.
Use only within the oscilloscope and probe rated input limits. Do not connect to unknown or hazardous high-voltage circuits without verified ratings, proper isolation and appropriate expertise.
FAQ

Quick Answers Before Ordering.

Can I use it for car audio tuning?

It can be useful for compatible low-voltage car-audio signal viewing and troubleshooting. Always stay within the instrument and probe input ratings.

What are the bandwidth and sampling rate?

The current product graphic lists 200kHz bandwidth and 2.5MS/s sampling.

Is it rechargeable?

Yes. The current product materials list a built-in 1000mAh lithium battery with Type-C 5V/1A charging.

Does it have automatic setup?

Yes. A dedicated AUTO function is shown for one-click automatic adjustment.

Can it stand on a workbench?

Yes. A 90° foldable rear stand is shown for hands-free viewing.

See the Signal. Find the Problem.

Put Real-Time Waveform Testing in Your Toolbox.

Carry a compact oscilloscope for automotive electronics, audio work, DIY circuits and learning — without hauling a full bench instrument to every project.

CHOOSE YOUR BUNDLE ABOVE
200kHz • 2.5MS/s • 2.8" LCD • 1000mAh • USB-C • AUTO setup
