📐 Adjustable Tile Hole Positioning Ruler – Multi-Hole Measuring & Marking Tool, 40cm/60cm

📐 Adjustable Tile Hole Positioning Ruler – Multi-Hole Measuring & Marking Tool, 40cm/60cm

 (9612 Reviews)
👑 300+ orders in the last 24h
$24.99
$24.99
SAVE Sold out
40cm
40cm
60cm
60cm

BUNDLE & SAVE


add_shopping_cart

-

Ordered

local_shipping

- - -

Order Ready

redeem

- - -

Delivered

📐 Adjustable Tile Hole Positioning Ruler – Multi-Hole Measuring & Marking Tool, 40cm/60cm

📐 Adjustable Tile Hole Positioning Ruler – Multi-Hole Measuring & Marking Tool, 40cm/60cm

$24.99
$24.99
SAVE Sold out
PRO TILE POSITIONING TOOL

Measure. Lock.
Transfer.

Copy pipe and wall-opening positions directly onto tile with one adjustable stainless-steel tool — helping reduce guesswork, bad hole placement and wasted material.

↔️ Dual-Axis Adjustment 🔒 Lockable Position ⭕ Multi-Hole Template 📐 40cm / 60cm

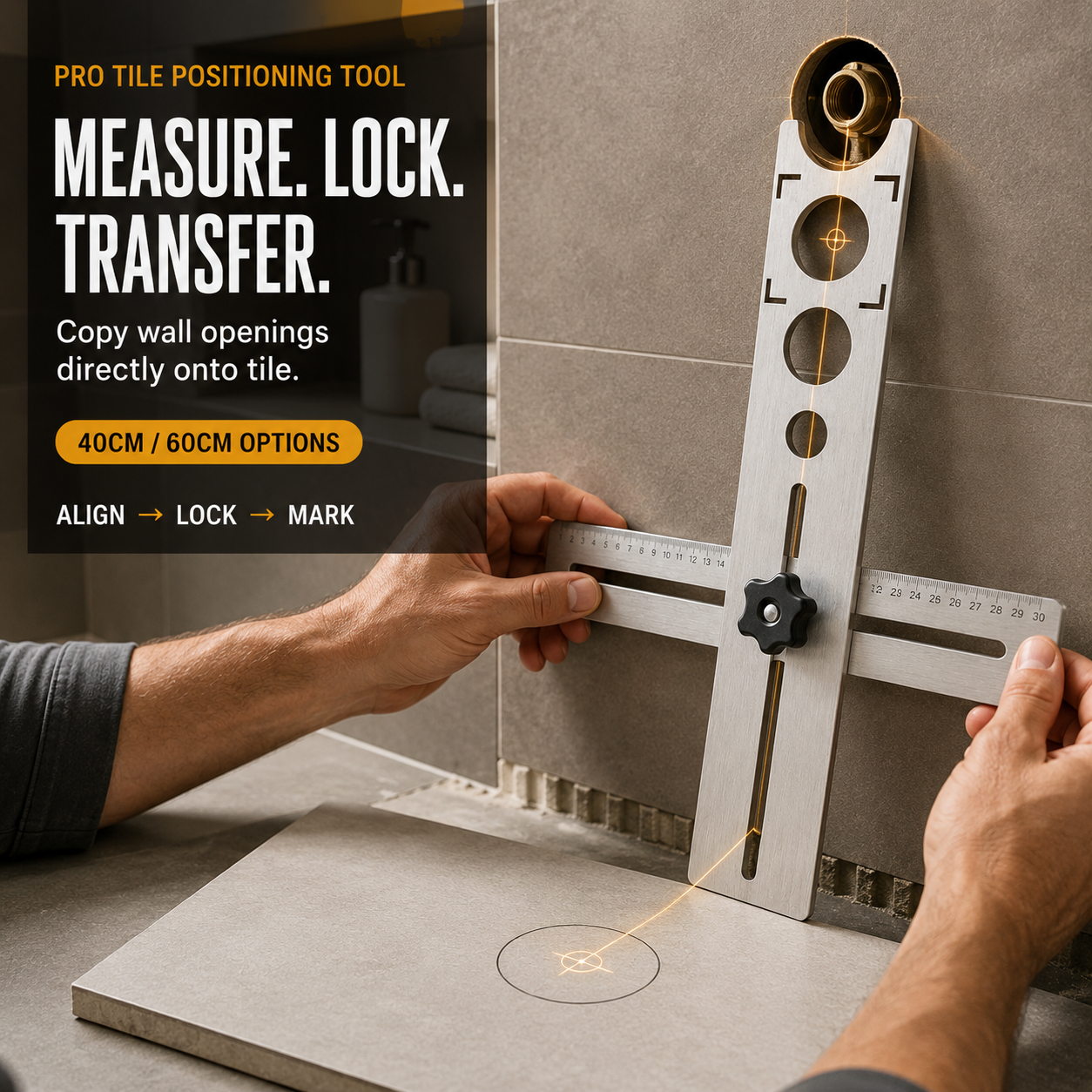

Adjustable tile hole positioning ruler transferring wall opening position onto tile
Manual tile measurement compared with direct hole position transfer
LESS GUESSWORK · LESS REWORK

Stop Measuring the
Same Position Twice.

Repeated tape measurements and handwritten calculations create more opportunities for a small error to turn into a misplaced hole.

The Old Way

Measure every distance manually

Write down multiple dimensions

Calculate the location again on the tile

Higher chance of positioning errors

The Smarter Way

Capture the real wall-opening position

Lock the selected layout

Move the tool directly onto the tile

Trace one clean reference position

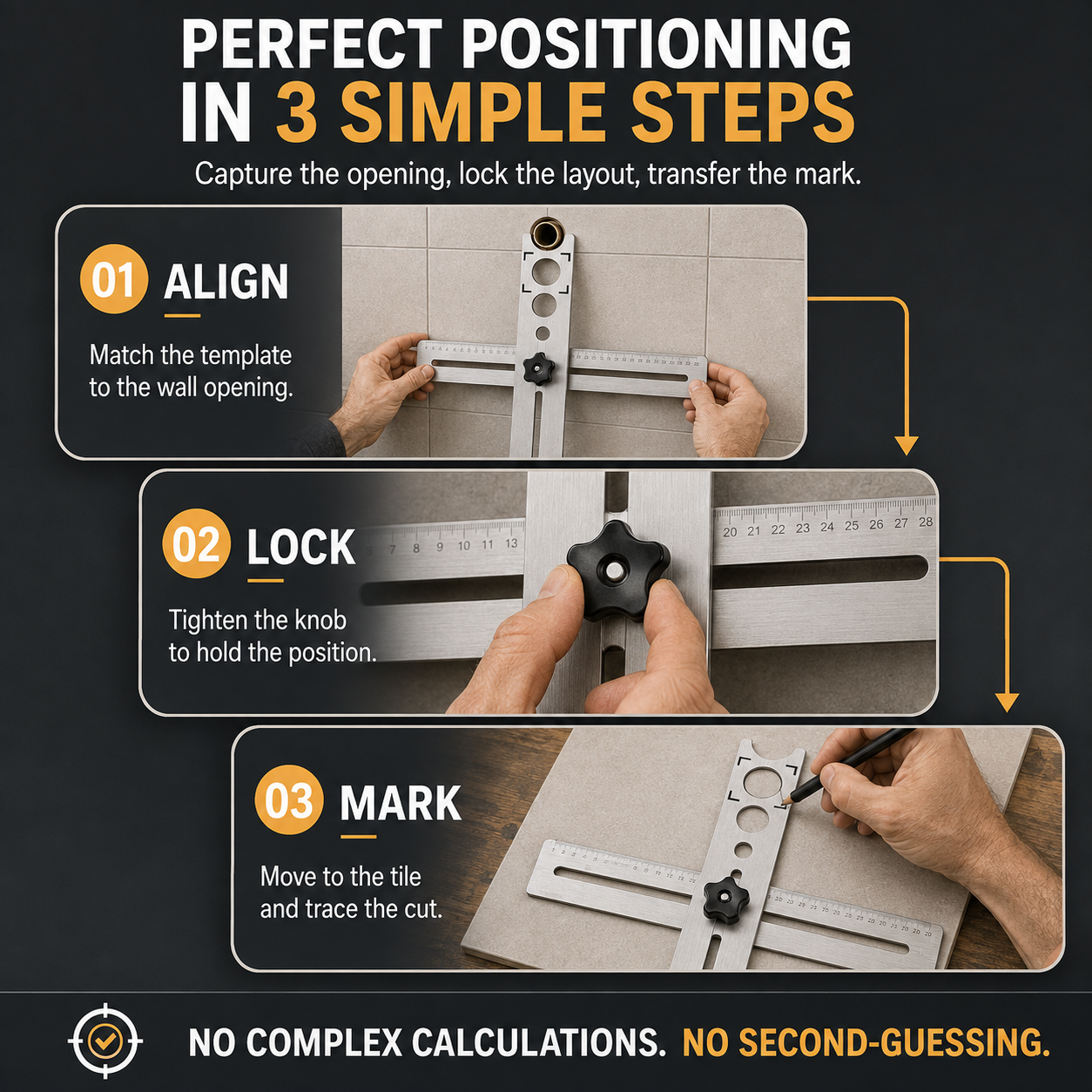

Three step tile hole locator process align lock and mark
THREE SIMPLE STEPS

Align. Lock.
Mark.

Preserve the actual hole position from the wall and transfer it to your tile without rebuilding the layout from measurements.

1
Align Match the template to the wall opening.
2
Lock Tighten the center knob to preserve the position.
3
Transfer & Mark Move to the tile and trace the required opening.

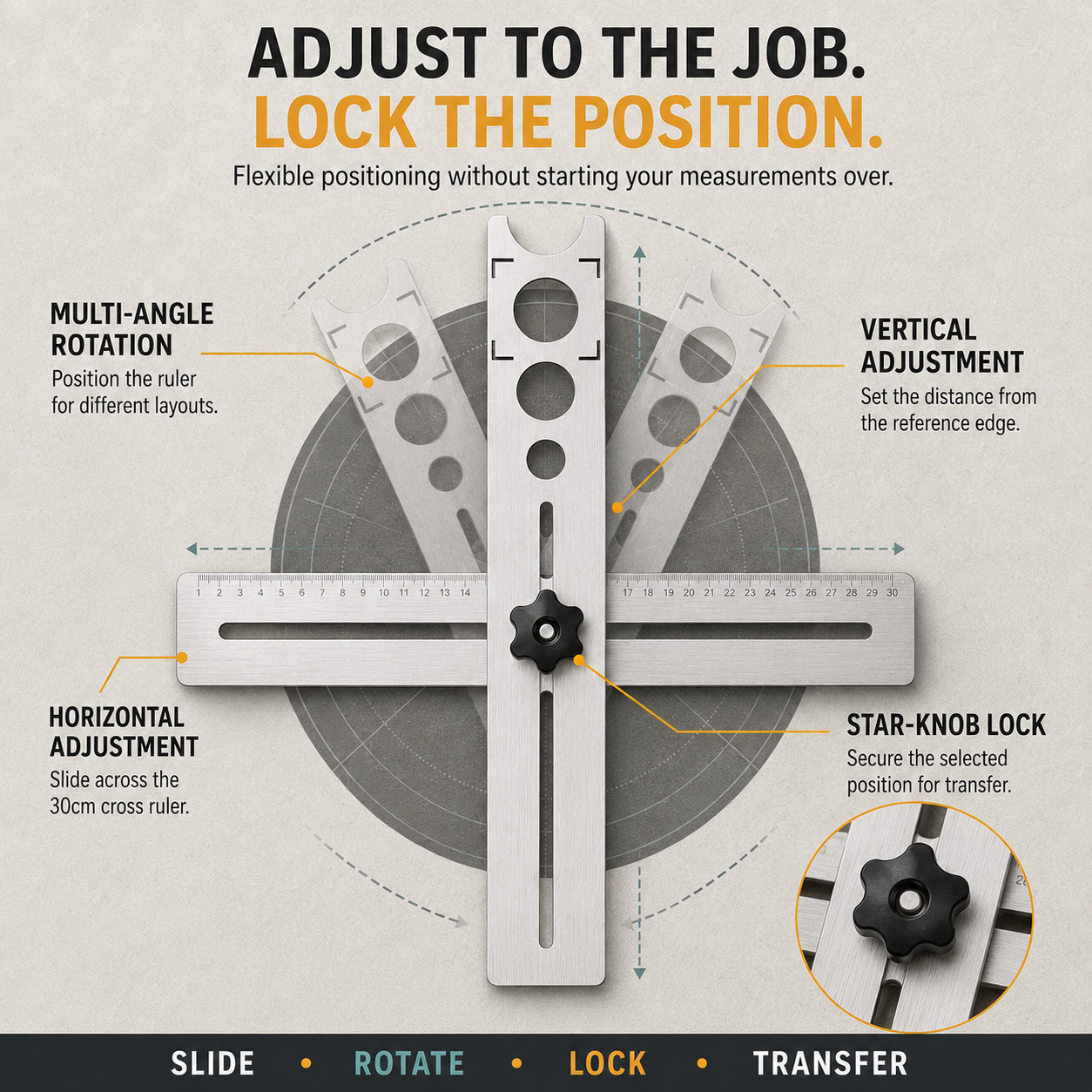

Dual axis adjustable tile positioning ruler with star knob lock
ADJUST TO THE JOB

Position It.
Lock It in Place.

Long adjustment slots let you capture both horizontal and vertical distances, while the center star knob holds the selected layout for transfer.

↕ Vertical Adjustment Set the distance from the tile edge or reference surface.
↔ Horizontal Adjustment Slide across the 30cm cross ruler to capture side-to-side position.
🔄 Multi-Angle Rotation Rotate the vertical ruler when the installation requires another angle.
🔒 Star-Knob Lock Secure the layout before moving from the wall to the tile.

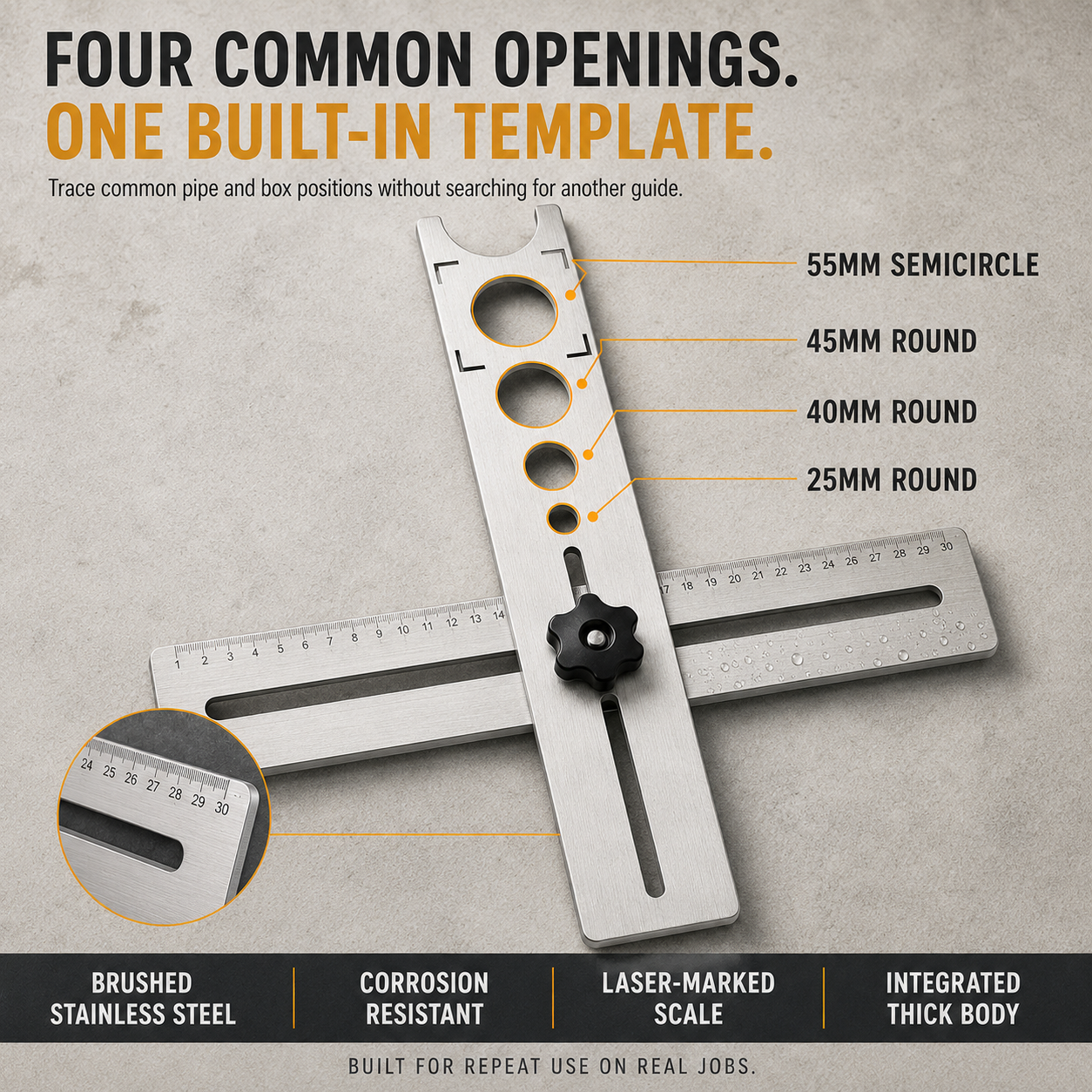

Stainless steel tile positioning ruler with 55 45 40 and 25mm hole templates
FOUR COMMON OPENINGS · ONE TOOL

Built-In Templates
Ready to Trace.

Multiple integrated openings help you trace several common plumbing and renovation layouts without searching for a separate circle template.

55mm Top Semicircle
45mm Round Template
40mm Round Template
25mm Round Template
🛡️
Stainless Steel Rigid integrated metal construction.
💧
Corrosion Resistant Designed for repeated renovation and tile work.
📏
Laser-Marked Scale Clear measurement references along the ruler.
▣
Integrated Layout Marks Additional references for common wall-opening layouts.

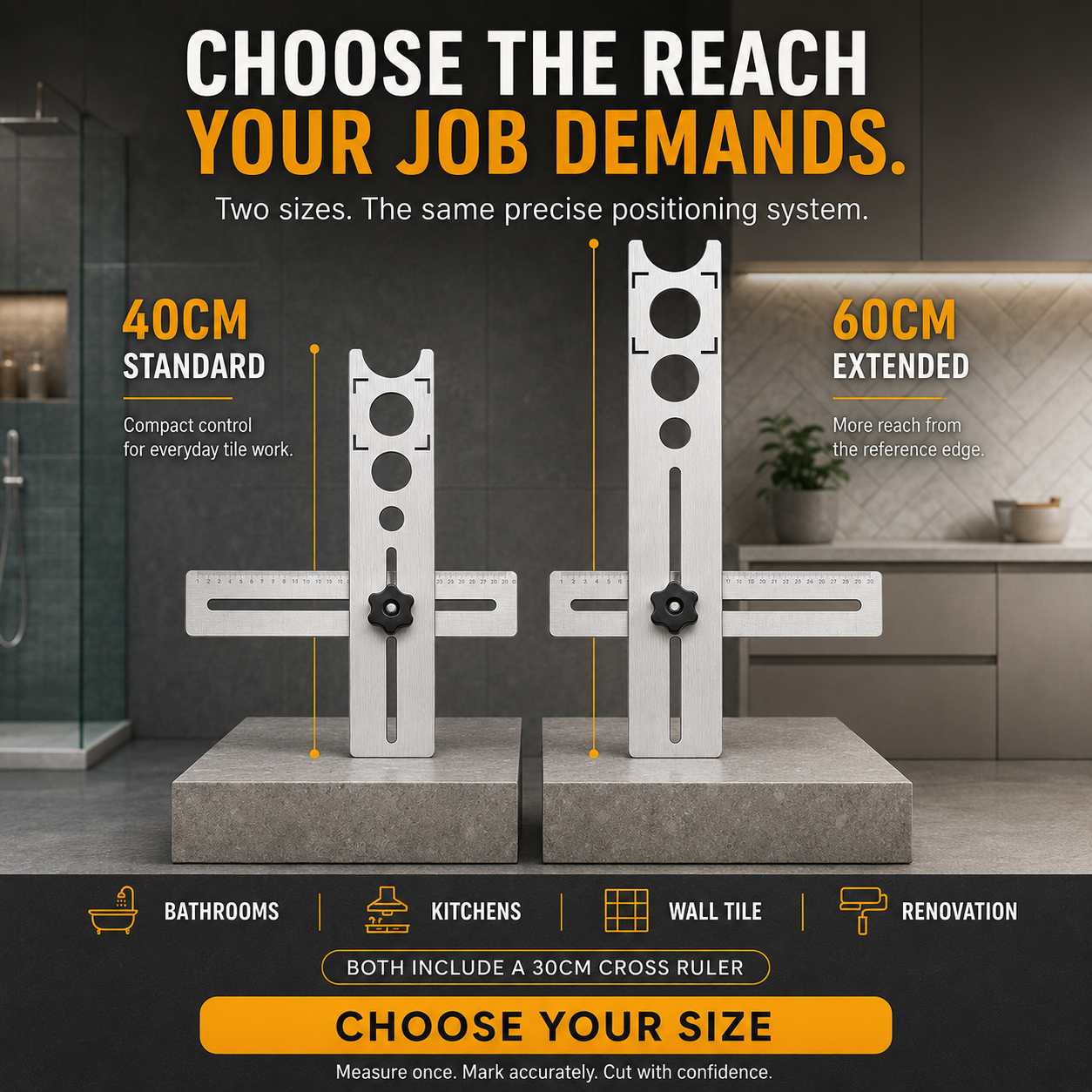

40cm and 60cm adjustable tile hole positioning ruler options
CHOOSE THE REACH YOUR JOB DEMANDS

Available in
40cm & 60cm.

Both versions use the same positioning concept and include a 30cm horizontal cross ruler. Choose the longer version when you need more distance from the reference edge.

40CM Standard Compact control for common bathroom, kitchen and wall-tile layouts.
60CM Extended Reach Extra working range for openings farther from the reference edge.
🚿 Bathroom Pipes
🚰 Kitchen Plumbing
🔌 Outlet Openings
🧱 Wall Tiles
🪵 Wood Panels
🛠️ Renovation Work
PRODUCT HIGHLIGHTS

Less Measuring.
More Confident Layouts.

  • Direct Position Transfer — copy the real wall-opening location instead of rebuilding it from multiple measurements.
  • Dual-Axis Adjustment — independently change vertical and horizontal positioning.
  • Lockable Layout — tighten the star knob before carrying the tool to the tile.
  • Multiple Hole Templates — trace several common opening sizes from the same tool.
  • Laser-Marked Scale — provides clear measurement references during setup.
  • Two Reach Options — choose 40cm Standard or 60cm Extended.
PRODUCT DETAILS

Specifications

Product Type Adjustable Tile Hole Positioning / Marking Ruler
Material Stainless Steel
Size Options 40cm / 60cm
Horizontal Cross Ruler 30cm
Adjustment Horizontal + Vertical Sliding Adjustment
Angle Positioning Rotatable Layout
Locking System Center Star-Knob Lock
Top Template 55mm Semicircle
Round Templates 45mm / 40mm / 25mm
Scale Laser-Marked Measuring Scale
Recommended Use Tile, Pipe Openings, Plumbing, Outlet Positioning, Wall Panels & Renovation Marking
Important: This tool measures, positions and marks the opening. It does not drill or cut the tile. A suitable drill, hole saw or cutting tool is required separately.
BEFORE YOU CUT

Measure Once.
Verify Before Drilling.

  • Align to a Reliable Reference — use the tile edge or another fixed surface consistently.
  • Tighten the Center Knob — make sure the layout cannot move before transfer.
  • Recheck the Mark — verify the position against the actual wall opening before cutting.
  • Use the Correct Cutting Tool — choose a drill, hole saw or tile cutter appropriate for the material.
  • Wear Protective Equipment — tile cutting can produce sharp fragments and dust.
QUICK ANSWERS BEFORE ORDERING

Frequently Asked Questions

Does this tool drill the hole?
No. It is a positioning, measuring and marking tool. You still need a suitable drill, hole saw or cutting accessory to create the actual opening.
What is the difference between 40cm and 60cm?
The vertical ruler is available in 40cm or 60cm. The 60cm version provides additional reach when the opening is farther from your reference edge. Both versions use a 30cm horizontal cross ruler.
How do I keep the measurement from moving?
After aligning the horizontal and vertical rulers, tighten the center star knob before moving the positioning tool from the wall to the tile.
What hole templates are included?
The current design includes a 55mm top semicircle plus 45mm, 40mm and 25mm round templates.
Can the ruler be used at different angles?
Yes. The vertical section can rotate around the center connection when a different layout angle is required.
Can it be used for more than plumbing holes?
Yes. The current product page also suggests outlet openings, junction-box layouts, wall tiles, wood panels and other renovation positioning tasks.
What is the ruler made from?
The current product specification describes a stainless-steel body with laser-marked scales.
Which size should I choose?
Choose the 40cm version for many common bathroom, kitchen and wall-tile jobs. Choose 60cm when you regularly need additional reach from the reference edge.
MEASURE ONCE · MARK ACCURATELY

Stop Guessing.
Transfer the Real Position.

Capture the wall opening, lock the layout and transfer the position directly onto your tile before drilling or cutting.

📐 CHOOSE 40CM OR 60CM
↔️ DUAL-AXIS ADJUSTMENT   •   🔒 LOCKABLE POSITION   •   ⭕ 4 HOLE TEMPLATES   •   🛡️ STAINLESS STEEL
